Stainless Steel Waterfall & Pond Pumps

High volume, Solids handling pump for residential & commercial waterfalls and ponds.

Moving a lot of water up to a wide waterfall requires a high volume pump with a high head. These stainless steel pumps are industrial and suitable for dirty pond conditions!




Pump Applications:

Key Features:

effluent pump  stainless steel effluent pump chart



Pump Specification:

Technical Data:

  • DISCHARGE -  1.25" NPT. Vertical

  • SOLIDS HANDLING 1/8"

  • LIQUID TEMPERATURE 104 Degrees F. Contiuous, 140 Degrees F. Intermittent

  • MOTOR HOUSING 304 Stainless Steel

  • VOLUTE 304 Stainless Steel

  • SEAL PLATE 304 Stainless Steel

  • IMPELLER - Stainless Steel

  • SHAFT  Corrosion resistance stainless steel, threaded design.

  • BEARING (UPPER & LOWER) Ball bearing  construction to carry all radil and thrust loads

  • HARDWARE 300 Series Stainless Steel

  • SQUARE RINGS Buna-N

  • POWER CORD 20ft quick disconnect cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW

  • DUAL MECHANICAL SEALS:
    Stainless steel metal parts, BUNA-N elastomers
    Upper Seal: Carbon vs Ceramic
    Lower Seal: Silicon Carbide vs Silicon Carbide

  • MOTOR (SINGLE PHASE)
    3450 RPM, 60Hz, 115 Volts, 2 Pole
    Air Filled, Class B
    Permanent Split Capacitor

  • SIZE 6" X 6" X 12"

OPTIONAL: Piggy back ball float switch.  Only 54.95

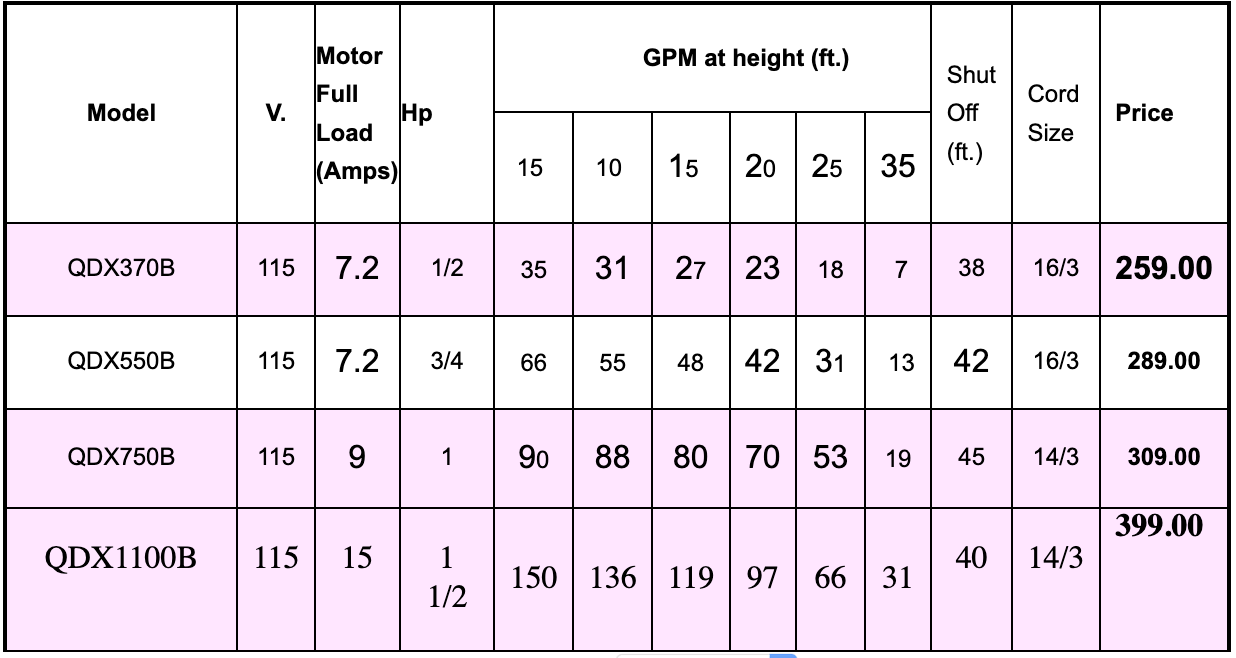

spec table

Motor Size:





Pump Applications:

Key Features:

       effluent sewage pump  effluent sewage pump chart

Pump Specification:

  • DISCHARGE -  2" NPT. Side

  • SOLIDS HANDLING 1/8" (Screen Size)

  • LIQUID TEMPERATURE 104 Degrees F. Continuous, 140 Degrees F. Intermittent

  • MOTOR HOUSING 304 Stainless Steel

  • VOLUTE 304 Stainless Steel

  • SEAL PLATE 304 Stainless Steel

  • IMPELLER 304 Stainless Steel

  • SHAFT  Corrosion resistance stainless steel, threaded design.

  • BEARING (UPPER & LOWER) Ball bearing  construction to carry all radial and thrust loads

  • HARDWARE 300 Series Stainless Steel

  • SQUARE RINGS Buna-N

  • POWER CORD 20ft quick disconnect cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW

  • DUAL MECHANICAL SEALS:
    Stainless steel metal parts, BUNA-N elastomers
    Upper Seal: Carbon vs Ceramic
    Lower Seal: Silicon Carbide vs Silicon Carbide

  • MOTOR (SINGLE PHASE)
    3450 RPM, 60Hz, 115 Volts, 2 Pole
    Air Filled, Class B
    Permanent Split Capacitor

  • SIZE 6.5" X 8.5" X 15.5

Piggy back ball float switch.  Only 54.95

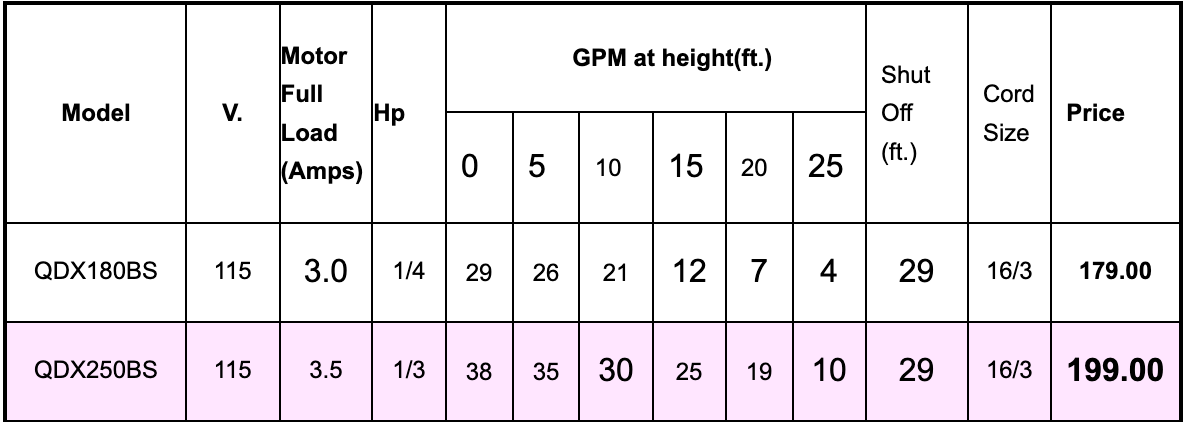

spec table

Motor Size :





WQB Stainless Steel Effluent Pump Pump Applications:

Key Features:

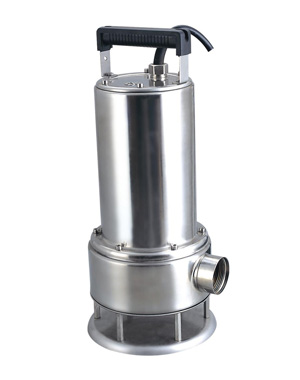

wqb stainless steel pump  pump flow chart


Specifications for effluent pumps:

Technical Data:

  • DISCHARGE -  2" NPT. Vertical

  • SOLIDS HANDLING 1-1/2"

  • LIQUID TEMPERATURE 104 Degrees F. Continuous, 140 Degrees F. Intermittent

  • MOTOR HOUSING 304 Stainless Steel

  • VOLUTE 304 Stainless Steel

  • SEAL PLATE 304 Stainless Steel

  • IMPELLER 304 Stainless Steel

  • SHAFT  Corrosion resistance stainless steel, threaded design.

  • BEARING (UPPER & LOWER) Ball bearing  construction to carry all radial and thrust loads

  • HARDWARE 300 Series Stainless Steel

  • SQUARE RINGS Buna-N

  • POWER CORD 20ft quick disconnect cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW

  • DUAL MECHANICAL SEALS:
    Stainless steel metal parts, BUNA-N elastomers
    Upper Seal: Carbon vs Ceramic
    Lower Seal: Silicon Carbide vs Silicon Carbide

  • MOTOR (SINGLE PHASE)
    3450 RPM, 60Hz, 115 Volts, 2 Pole
    Air Filled, Class B
    Permanent Split Capacitor

  • SIZE 8.5" X 6.5" X 16"


OPTIONAL:  Piggy back ball float switch / 115v.  Only 59.95



spec table

Motor Size
