Solar Powered Aeration Systems with Batteries
Now any AC powered fountain or aerator can be powered by solar! Decorative or aerating fountains are a popular feature in many ponds. In addition to fountains or aerators for agricultural and decorative ponds, many times this is installed as a means of mosquito control. Since these fountains are often installed in bodies of standing water where grid power is not available and prohibitively expensive to extend, solar power is the answer.
Off-Grid Solar Kits for Ponds less than 12' deep - $2595.00

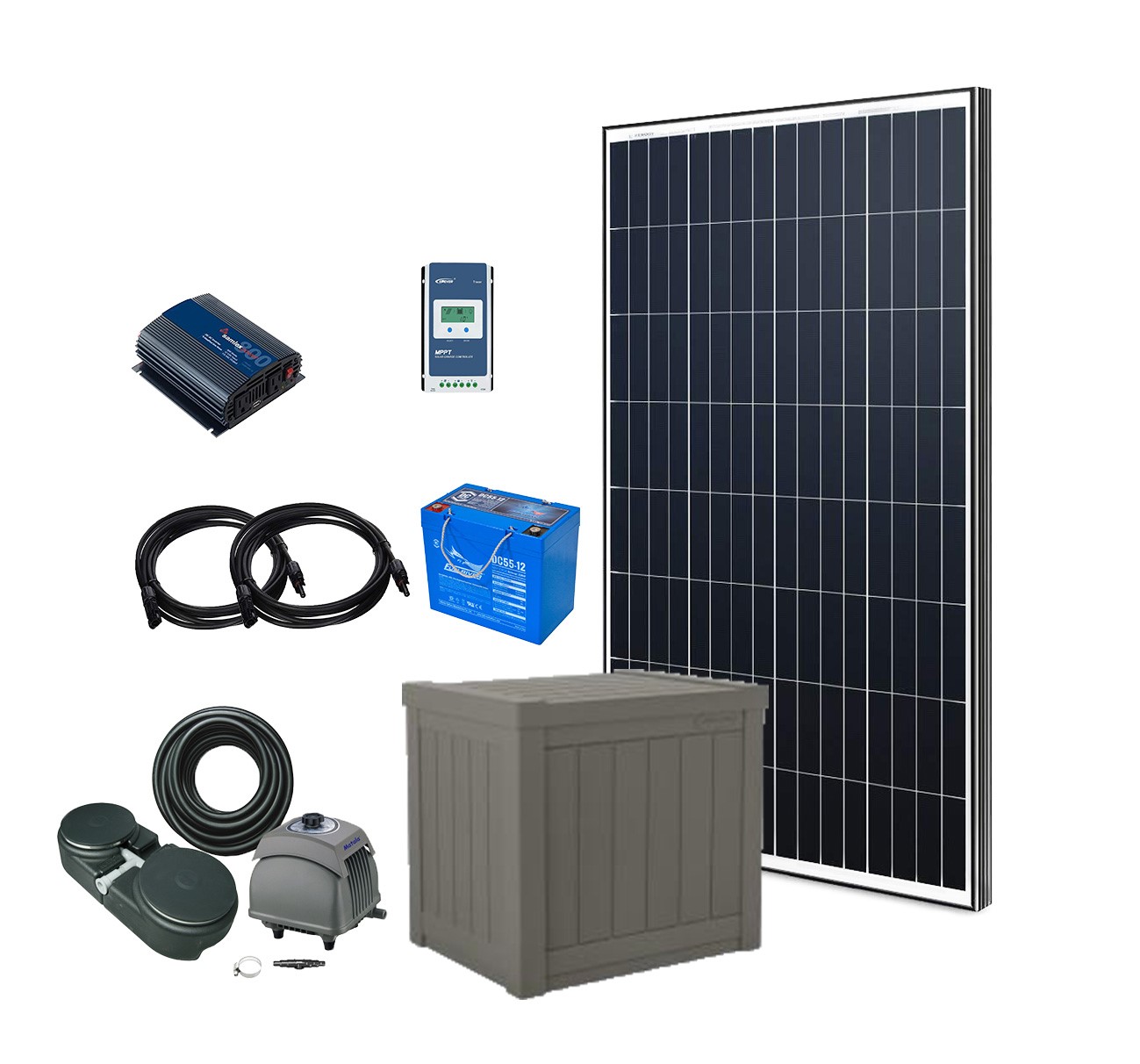

Pond Aeration Kit includes:
-
-1 - 320 Watt 24 Volt Monocrystalline Solar Panel plus MC4 Connectors.watt.
-
-24 volt 800 watt Inverter.
-
-Solar Controller.
-
-2 Solar Panel Extention Cable.
-
-12 volt Battery!
-
-Programmable Mechanical Timer
-
-Reinforced Outdoor Resin Deck Box.
- -Matala 100L Air Pump.
- -Air flow up to 119 lpm or 4.2 cfm.
- -Maximum water depth 16 feet.
- -Suggested water depth up to 10 feet.
- -For Ponds between 15,000 to 45,000 gallons.
Two MDB22 Weighted Base with 9 inch Disc Diffusers.
- -A total of four 9 inch EPDM Disc Diffusers with weighted base.
- -Produces medium size bubbles.
- -Lowest back pressure diffuser on the market for maximum air flow and longest life for the air pump.
- -Self Cleaning, no maintenance required. Very long lifetime.
- -Weighted Base is fish friendly. Two Double Bases support two disc diffusers each.
- -Hose clamp connectors included.
Weighted Air Hose
- -Two sections of 50 feet high quality 1/2" weighted hose.
2 Way Heavy Duty Manifold
- -High Quality Professional looking 2 way x 1/2" manifold with control valves.
- -3/4" connection to the Hakko with two 1/2" barbs connecting to the hose.
Off-Grid Solar Kits for Ponds more than 12' deep - $3895.00
Pond Aeration Kit includes:
-
-2 - 320 Watt 24 Volt Monocrystalline Solar Panel plus MC4 Connectors.watt.
-
-24 volt 1000 watt Inverter.
-
-Solar Controller.
-
-2 Solar Panel Extention Cable.
-
-12 volt Battery!
-
-Programmable Mechanical Timer
-
-Reinforced Outdoor Resin Deck Box.
- 1/4 Hp Rocking Piston Compressor with oil filled pressure gauge and pressure relief valve, 2 way valve manifold.
- One air bases with 9" air disc diffusers.
- -For ponds up to 1 acre.
Weighted Air Hose
- -100 feet of 3/8" heavy duty self sinking non-kinking air hose.
